A Columbus Retaining Wall Built With Drainage Before a Single Shovel of Backfill
Gravel backfill and weep holes installed at base level on every wall — standard, not an upgrade.
A Columbus Retaining Wall Is Only as Good as the Drainage Behind It
Retaining wall drainage isn’t optional in Columbus — it’s what keeps the wall standing.
A concrete retaining wall in Columbus holds back soil, yes. But what it’s really managing is water. Columbus’s clay-heavy soil saturates slowly and drains even slower. When that saturated soil mass presses against a wall without anywhere for the water to go, the pressure builds. That pressure — called hydrostatic pressure, meaning the force exerted by saturated soil against a retaining structure — is the primary reason Columbus retaining walls fail.
We install gravel backfill (crushed stone placed directly behind the wall to let water drain freely downward) and weep holes (openings built into the base of the wall to let that water escape) before any native soil goes back in. Every wall. Every time.
That’s not a premium upgrade. That’s the baseline.
Dublin, Upper Arlington, and Worthington: Where Columbus Grade Changes Demand Real Walls
Columbus’s hillside suburbs have the most pronounced residential grade changes in Franklin County.
Dublin, Upper Arlington, and Worthington lots commonly carry a 3-to-6-foot elevation difference between the main yard and a neighboring property, lower bed, or driveway. That’s not a gentle slope. That’s a grade change that erodes actively every time it rains.
Columbus clay soil expands when wet and contracts when dry. Without a wall to hold the grade, that seasonal movement shears soil downward. Mulch migrates. Roots get exposed. The slope gets more pronounced each year. Upper Arlington alone has dozens of blocks where tree-lined streets meet hillside lots that have been shedding soil for decades.
From our office on Campus View Blvd, we’re a straight run up US-33 and SR-315 to serve these neighborhoods within the same scheduling window as flat-lot work elsewhere in the metro.

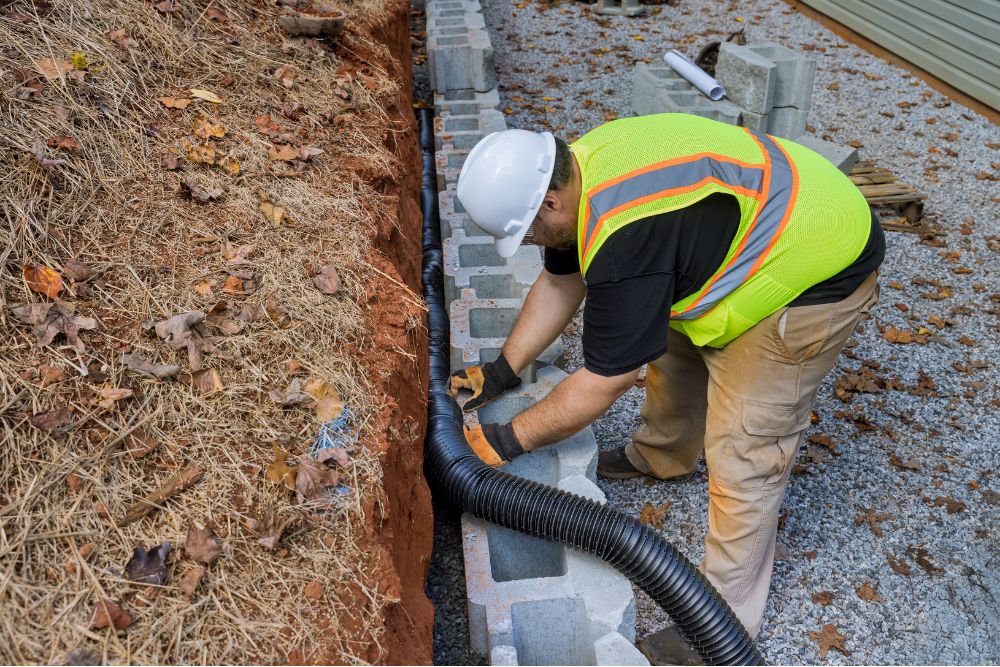

Installing Gravel Backfill and Weep Holes Before Any Native Soil Went Back In
Here’s what a retaining wall installation looks like when drainage is the first priority.
On a recent project in a Dublin hillside backyard, we replaced a timber wall that had rotated forward at the base — a sign of unrelieved hydrostatic pressure. The original wall had no drainage layer. Just timber against clay. After five wet seasons, the pressure won.
Before we formed anything for the new poured concrete wall, we excavated 12 inches beyond the planned wall face. That space let us set the footing below Ohio’s frost line — between 30 and 36 inches down — and build the drainage layer properly. A wall footing above the frost line will heave in February and resettle in April. Three years of that cycle and the wall starts moving.
- Excavation: 12 inches beyond the planned wall face for footing + drainage layer
- Footing depth: 30 to 36 inches — below Ohio’s frost line
- Gravel backfill: 6 inches of compacted gravel directly behind the wall face before any weep holes are placed
- Weep holes: Every 5 feet along the base course — enough to drain the gravel without leaving saturated pockets
- Native soil: Returned as backfill only after the full drainage system is complete
The homeowner watched the whole sequence. When I explained why we weren’t rushing to bury the wall, they said they’d never seen it done that way.
Drainage installed after backfill isn’t drainage — it’s decoration.
Drainage Is Installed Before Backfill Begins — Without Exception
Every Columbus Concrete Solutions retaining wall includes a drainage system built before backfill.
A common question: does a wall under 4 feet still need drainage? Yes. Height determines whether a Franklin County building permit is required — walls over 4 feet typically require a permit and an engineer-stamped design — but drainage requirements don’t change with height. A 2-foot wall holding back saturated Columbus clay still generates hydrostatic pressure. A 2-foot wall without weep holes can still tip.
- ✓Drainage system before backfill — required regardless of wall height, including walls under 4 feet
- ✓Franklin County permit coordination — managed start to finish on walls 4 feet and over
- ✓Engineer-stamped design — coordinated as part of the permit review when required
- ✓Drainage scope in writing — listed on the proposal before any contract is signed
Permit coordination is part of our scope on every applicable project. If your wall reaches the 4-foot threshold, we manage the Franklin County permit process — including the engineering review requirement — before any forming begins.
How We Build Columbus Retaining Walls That Resist Hydrostatic Pressure
Our retaining wall standards are built around Columbus’s clay soil and freeze-thaw conditions.
Every retaining wall we build follows this specification:
- Footing depth: Below Ohio’s frost line — 30 to 36 inches — on every wall, regardless of height.
- Drainage layer: 6 inches minimum of compacted gravel backfill, installed before any native soil is returned.
- Weep holes: Spaced every 4 to 6 feet along the base course, positioned within the gravel layer.
- Concrete mix: Air-entrained mix on all poured walls — required for freeze-thaw survival in Columbus’s exterior conditions.
- Permit coordination: Managed at the scoping stage for walls over 4 feet — Franklin County permit and engineering review included in project scope.
- Wall type selection: Based on height, load, and permit threshold — poured concrete or segmental concrete block matched to what each project requires.
Poured Concrete vs. Segmental Block: Choosing Based on Height, Load, and Permit Threshold
The right wall type for your Columbus project depends on three measurable factors.
Poured Concrete Retaining Wall
- What it isA wall formed and poured as a single monolithic structure. High strength. Handles tall walls and heavy backfill loads well.
- SequenceRequires forming, rebar placement, and a cured footing before the wall pour begins.
- Best forWalls over 4 feet, walls with significant surcharge loading (driveways above, heavy landscape equipment), or applications where maximum strength per foot of wall is required.
Segmental Concrete Block Wall
- What it isBuilt from interlocking concrete units without mortar. The system allows natural flex and simplifies drainage management.
- SpeedFaster to construct than a formed-and-poured wall. Works well for walls under 4 feet where the Franklin County permit threshold is not triggered.
- Drainage ruleSame gravel backfill and weep hole drainage system applies. The block type changes — the drainage requirements don’t.
The Permit Dividing Line
- Walls Under 4 FeetGenerally no Franklin County permit required. Setback requirements still apply. Drainage system still required. Segmental block is typically the right choice.
- Walls 4 Feet and OverFranklin County permit required. Engineer-stamped design typically required before issuance. Poured concrete or engineered segmental systems are appropriate.
- One clarificationThe 4-foot measurement is the exposed wall height above grade, not total wall depth including footing. That matters when a sloped site creates varying exposed heights along the same wall run.
Retaining Wall Installation Serving Columbus's Hillside Properties and Commercial Sites
We serve the Columbus neighborhoods where grade management matters most.
Hillside-suburb concentration — where 3-to-6-foot grade changes are most common, direct route via US-33 and SR-315 from Campus View Blvd:
DublinUpper ArlingtonWorthington
Broader Columbus metro service areas:
HilliardClintonvilleBexleyGahannaWestervilleNew AlbanyGrove City
We also handle commercial retaining wall projects for property managers, developers, and contractors throughout the Columbus metro. All work dispatched from 100 East Campus View Blvd, Columbus, OH 43235.
Get a Columbus Retaining Wall Estimate With Drainage Scope Included
- ✓Approximate height of the grade change — under 4 ft, 4–6 ft, or over 6 ft
- ✓Project address — Franklin County address so we can confirm permit jurisdiction
- ✓Wall purpose — residential yard grade, driveway support, commercial property, or replacement of an existing failing wall
- ✓Soil-condition observations — active erosion, pooling water at the base, an existing wall leaning or rotating, or exposed roots
We’ll confirm wall type, drainage scope, and permit requirements at the first consultation — before any proposal is written. You can also reach us at 100 East Campus View Blvd, Columbus, OH 43235.
Frequently Asked Questions
Does my Columbus retaining wall need a permit?
Walls under 4 feet of exposed height above grade generally do not require a Franklin County permit. Walls 4 feet and over almost always do, and the permit application typically requires an engineer-stamped design before issuance. The 4-foot measurement is the exposed wall height above grade — not total wall depth including the footing — which matters on sloped sites where the exposed height can vary along the same wall run. We confirm the permit requirement at the first consultation and manage the Franklin County permit process as part of the project scope when one is needed.
What's the difference between a poured concrete and a segmental block retaining wall?
A poured concrete wall is a single monolithic structure formed and poured in place, with rebar reinforcement and a cured footing underneath. It provides maximum strength per foot of wall and handles tall walls, heavy surcharge loads, and walls above 4 feet best. A segmental concrete block wall is built from interlocking concrete units without mortar — faster to construct, works well for walls under 4 feet, and allows natural flex that simplifies drainage management. The block type changes, but the gravel backfill and weep hole drainage system stays the same on both.
How long does a properly built retaining wall last in Columbus?
A retaining wall built with a frost-line footing, full drainage system, and air-entrained concrete mix should last 30 to 50 years or more under Columbus conditions. The two factors that determine the high end of that range are drainage and footing depth. Walls that fail early in Columbus almost always fail for one of those two reasons — either the footing was poured above the frost line and heaved, or no drainage system was installed behind the wall and unrelieved hydrostatic pressure rotated it forward. Get both of those right and the wall outlasts most other site features.
Why do retaining walls without drainage fail in Columbus?
Columbus clay soil holds water. When saturated soil presses against a retaining wall without a drainage layer behind it, hydrostatic pressure builds against the back of the wall and has nowhere to relieve. The wall tips, rotates forward at the base, or cracks along weak points. Gravel backfill placed directly behind the wall lets water move freely downward through the gravel and out through weep holes positioned at the base course. Without that path, the water has only one place to go — against your wall.
How close to a property line can a retaining wall be built in Columbus?
Setback requirements vary by jurisdiction within Franklin County and depend on wall height, lot zoning, and whether the wall is part of a permitted structure. The general expectation is that walls cannot be built directly on the property line, and that taller walls require more clearance. We verify the specific setback for your address before any forming begins — and any setback requirement is confirmed in writing in the project scope. If your wall reaches the 4-foot permit threshold, setback compliance is part of the permit review process as well.
How long does retaining wall installation take in Columbus?
Most residential retaining wall projects span 5 to 10 days from excavation to backfill completion, depending on wall length, height, and complexity. Day one or two is excavation behind the planned wall face. Footing pour follows, with cure time before the wall structure goes up. Poured concrete walls take an additional day or two for forming, rebar, and the wall pour itself. Segmental block walls go faster on the wall structure but follow the same excavation and drainage sequence underneath. Drainage layer and weep holes are completed before any native soil is returned as backfill.
